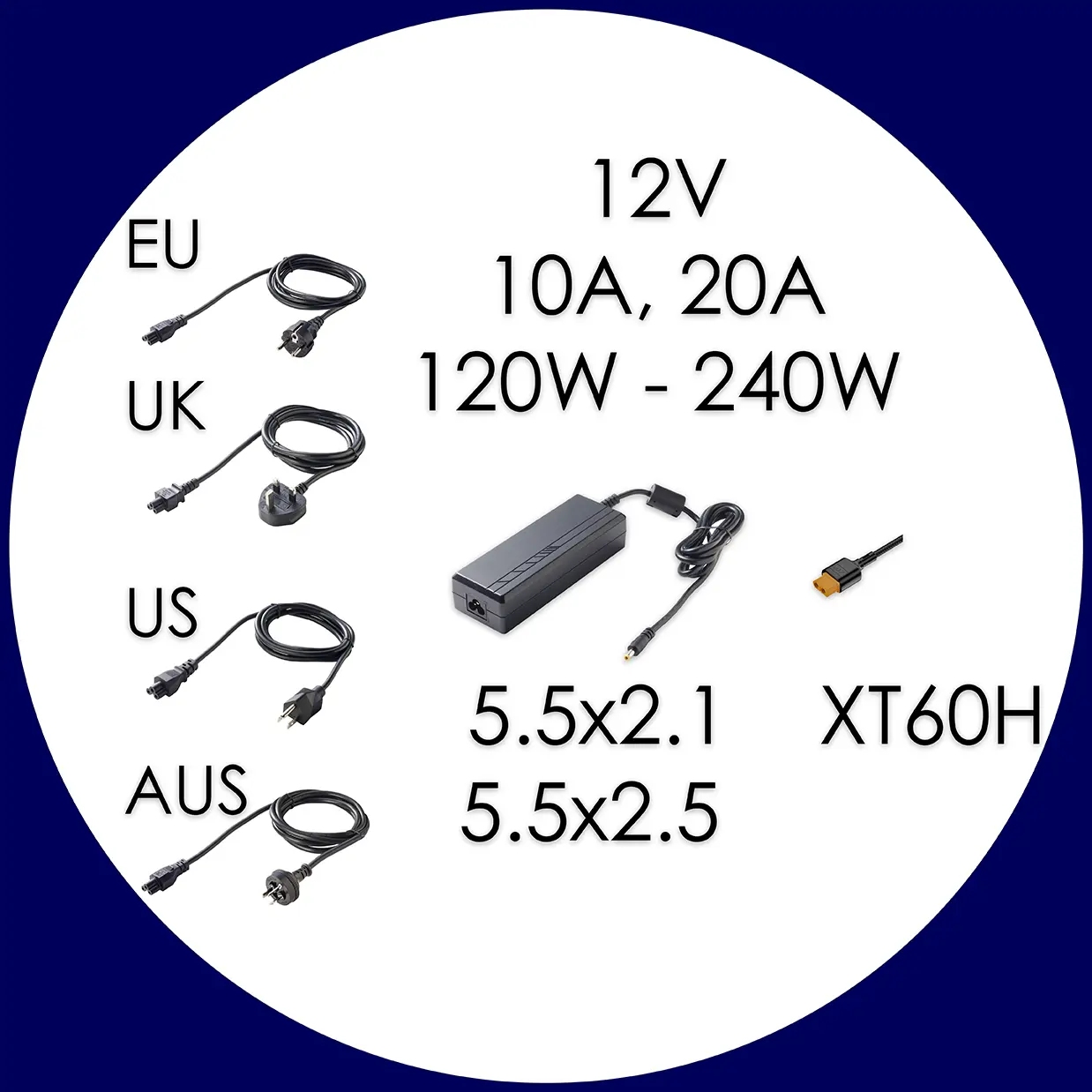

Pegasus Astro Power Supply Units 12V, 10-20A, 120-240W

•  For Pegasus Astro power distribution units & controllers
• Outputs:
  - 12-14 volts
  - 10 or 20 amps
• Input voltage:
  - 100-240V
  - 10 or 20 amps
  - max. 50-60Hz
• Barrel plug:
      - Ø 5.5x2.1mm
      - Ø 5.5x2.5mm
      - XT60
• Protection against moisture & dust

The sealed and certified switching power supplies are the perfect addition to almost all Pegasus Astro products.

A “low noise” power supply refers to a device that delivers a particularly clean and stable output voltage – i.e., with minimal electrical interference or fluctuations. This is particularly important in sensitive applications such as audio, measurement, or communication technology.

What does “noise” mean in a power supply?

• Electrical noise: Unwanted voltage or current fluctuations that are superimposed on the DC voltage. These can originate from the power supply itself (e.g., due to switching operations in switching power supplies) or from external interference.
• Types of noise:
  • Ripple: Periodic fluctuations, usually at the mains frequency or switching frequency.
  • Broadband noise: Random, high-frequency interference that spans a wide frequency spectrum.

Why is low noise important?

• Audio applications: Noise can be heard as humming or whistling.
• Measurement and control technology: Interference signals can distort measurement results or cause malfunctions.
• Digital electronics: Interference can lead to data errors or instability.

Supplied with a power cord (1.5 m) for your country type - you can select this accordingly.

Safety note:

The power supply must NOT be left lying on wet grass - the ideal place is the tripod shelf or a breathable bag. Although it is protected against moisture and dust, safety comes first!
