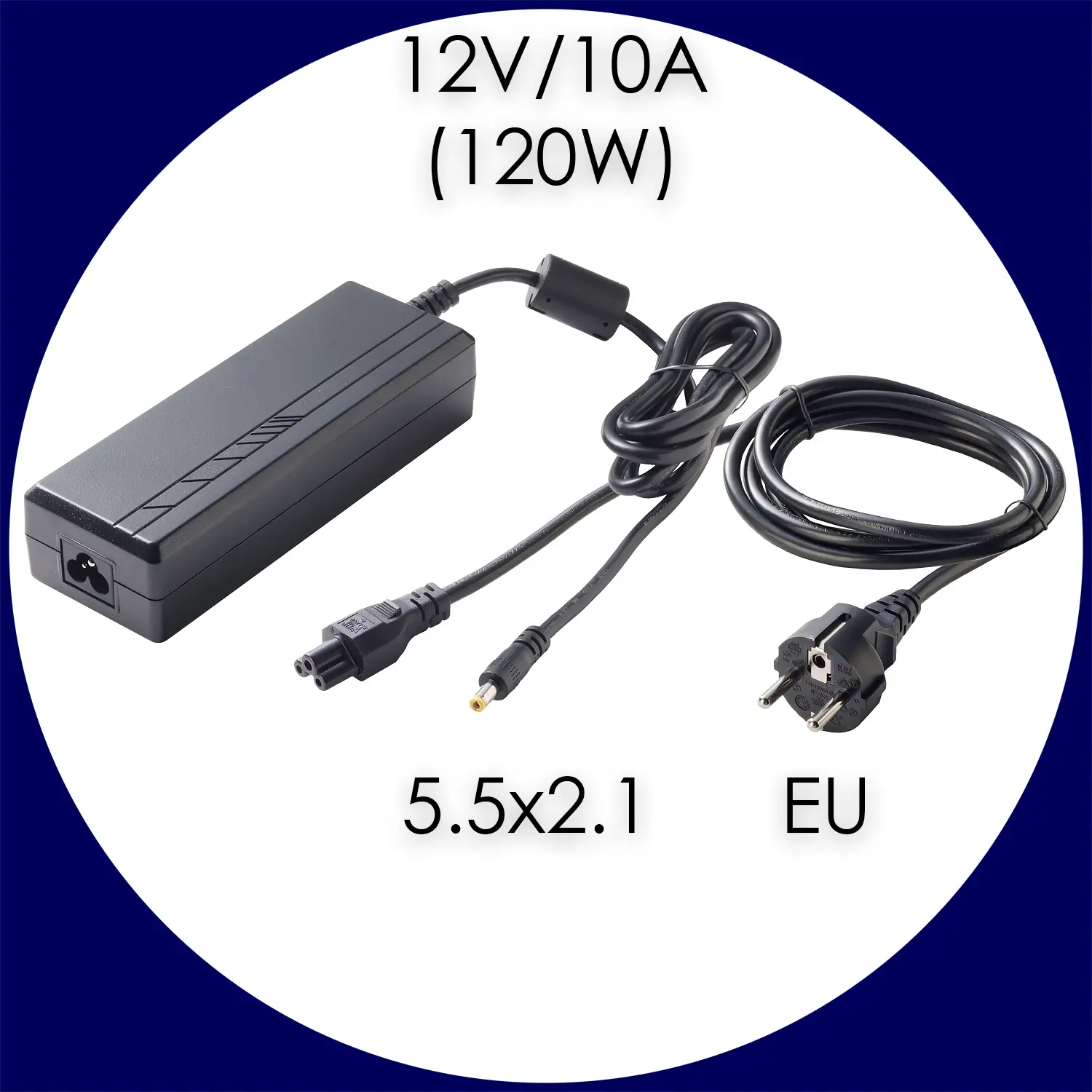

Pegasus Astro Power Supply Unit 12V / 10A – 120W, 5.5x2.1mm, EU-Cord
Product.Nr.:
PA#20254021-EU
products condition: new
Manufacturer: PegasusAstro
79,00 EUR
incl. 19 % VAT
-
Gewöhnlich versandfertig in 24 Stunden
- delivery time : 1-2 Tage
product description
- For Pegasus Astro Pocket Power Box (PPB) Micro
- Output: 12 volts, 10 amps
- Input voltage: 100-240V, 10A, max. 50-60Hz
- Barrel connector: Ø 5.5x2.1mm
- Protection against moisture and dust
- EU-Cord
The sealed and certified switching power supply is the perfect addition to almost all Pegasus Astro products. It delivers 12V and up to 10 amps (120W total power). Low ripple and low noise ensure that you supply your valuable devices with the necessary and correct “power.”
A “low noise” power supply refers to a device that delivers a particularly clean and stable output voltage – i.e., with minimal electrical interference or fluctuations. This is particularly important in sensitive applications such as audio, measurement, or communication technology.
What does “noise” mean in a power supply?
- Electrical noise: Unwanted voltage or current fluctuations that are superimposed on the DC voltage. These can originate from the power supply itself (e.g., due to switching operations in switching power supplies) or from external interference.
- Types of noise:
- Ripple: Periodic fluctuations, usually at the mains frequency or switching frequency.
- Broadband noise: Random, high-frequency interference that spans a wide frequency spectrum.
Why is low noise important?
- Audio applications: Noise can be heard as humming or whistling.
- Measurement and control technology: Interference signals can distort measurement results or cause malfunctions.
- Digital electronics: Interference can lead to data errors or instability.
Protections
- Over current/ Short protection: The power supply will self-protect any output to ground & auto recovery when abnormal circuit faults remove. An output short circuit is defined as any output impedance less than 0.1 ohms.
- Over Voltage: The power supply will be auto recovered when faults removeInput protection: F1:6.3A 250V Fuse. The power supply shall be protected against power line surges and any abnormal condition.
- No Load protection
The power supply is provided with no load operation to prevent the power supply and system from damage. - Protection class I
(ITU-T K.21 Surge 6KV on request)
Safety note:
The power supply must NOT be left lying on wet grass - the ideal place is the tripod shelf or a breathable bag. Although it is protected against moisture and dust, safety comes first!
Technical data
- Output: 12.5 volts, 10 amps
- Power: 120 watts
- Mains input voltage: 90-264 volts
- Frequency: 47-63 Hz
- Efficiency class (ErP): VI
- Protection against moisture and dust
- Dimensions: 169 x 61 x 39 mm
- Barrel connector: Ø 5.5 x 2.1 mm
- EU plug
Scope of delivery
- Pegasus Astro power supply 12 volts/10 amps (120W)
- Holster plug: 5.5x2.1mm
- EU plug
