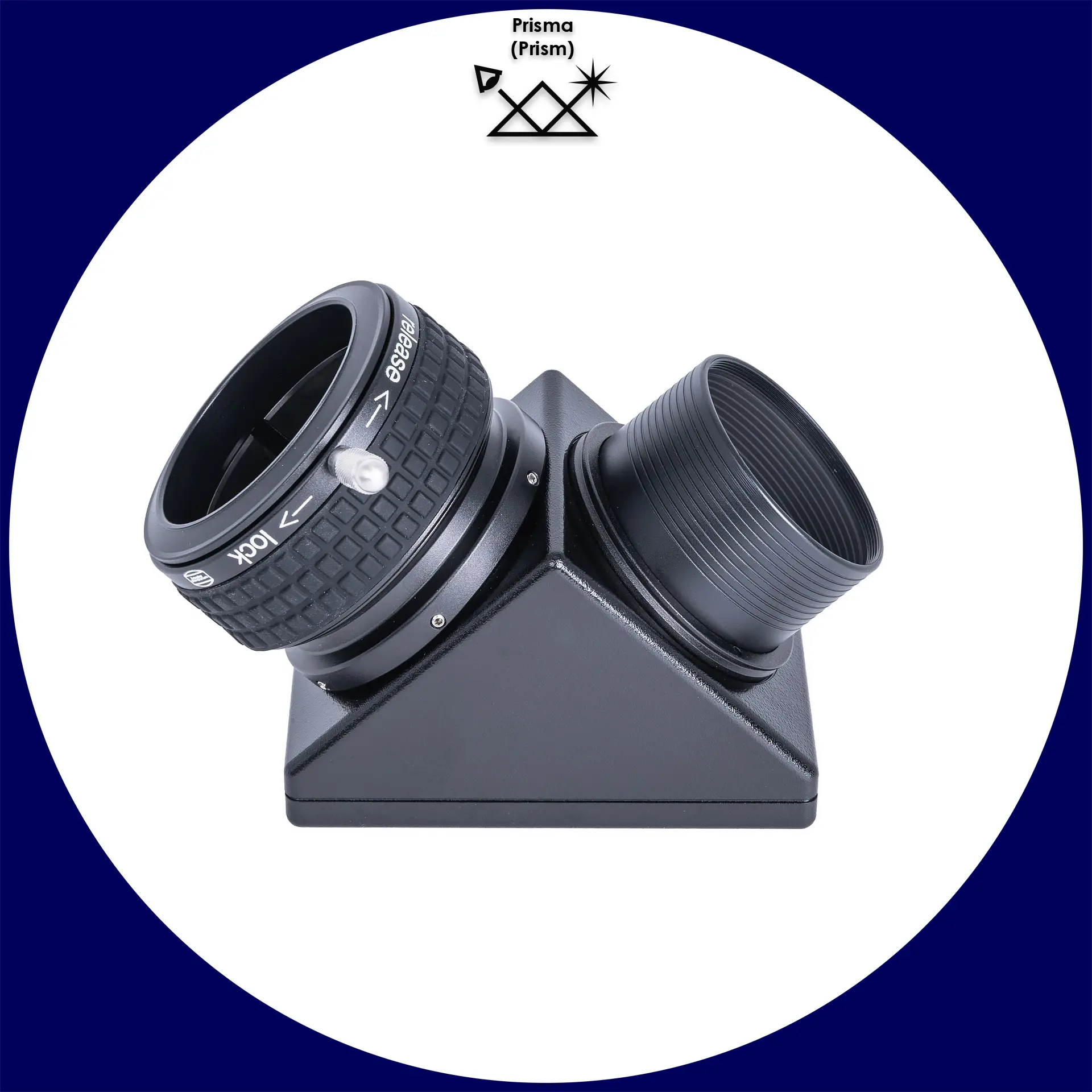

Baader 2" BBHS ® Prism Star Diagonal Prism with 2" ClickLock Clamp - Adjustable

Baader 2" BBHS ® Prism Star Diagonal Prism with 2" ClickLock Clamp - Adjustable

Name: Baader 2" BBHS ® Prism Star Diagonal Prism with 2" ClickLock Clamp - Adjustable
Brand: Baader Planetarium
SKU: BP#2456118
Price: 525 EUR

Product.Nr.: BP#2456118

EAN: 4047825059031

products condition: new

Manufacturer: Baader Planetarium

525,00 EUR
incl. 19 % VAT

excl. shipping costs

Nicht auf Lager
delivery time : bitte erfragen

There are no reviews for this product

product description

We only sell the new version – no clearance sale of the old version!
Available at the end of October – please reserve in good time (payment only required upon availability)
90° deflection
Upright image, mirror-inverted
BaK4 glass prism with sealed BBHS® coating

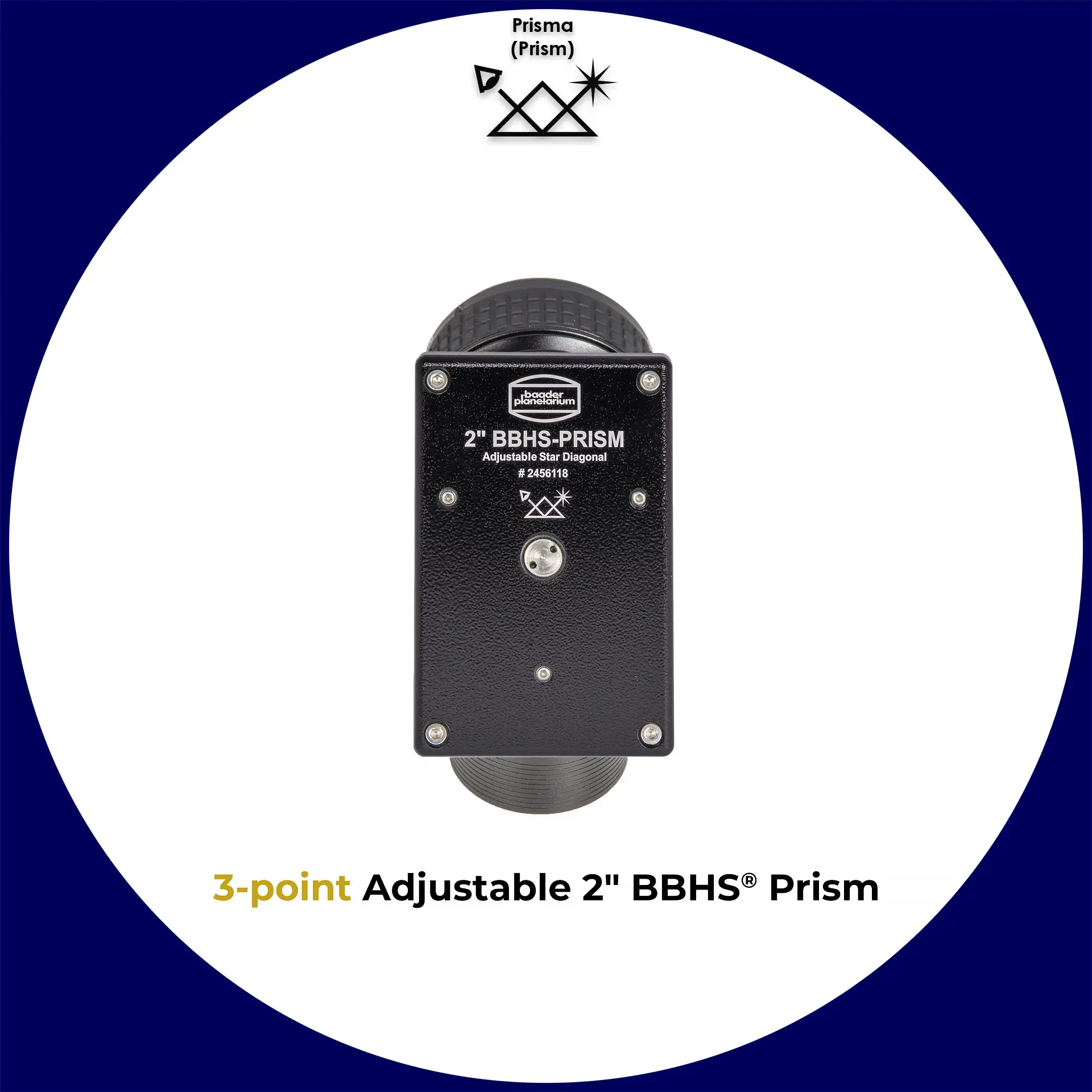

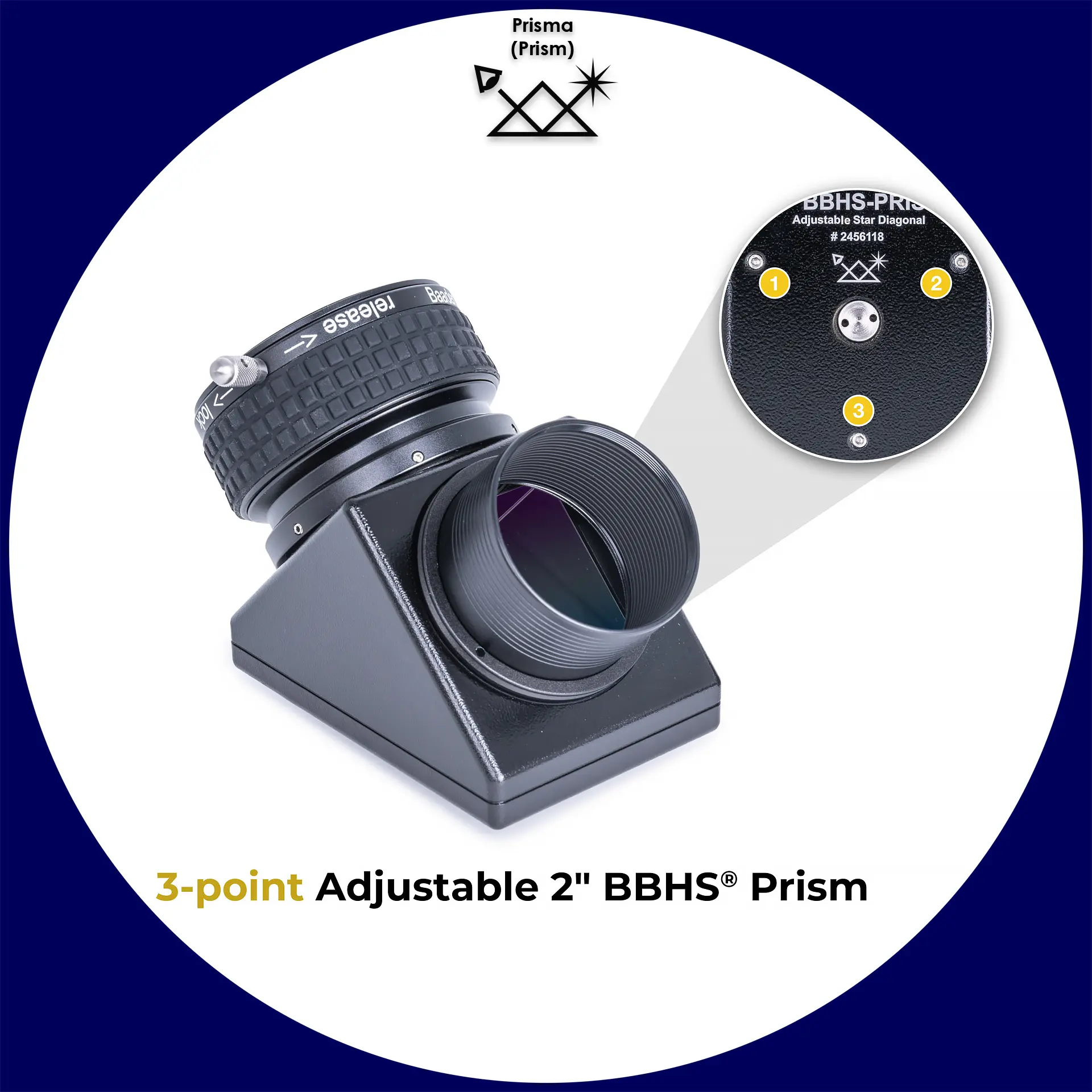

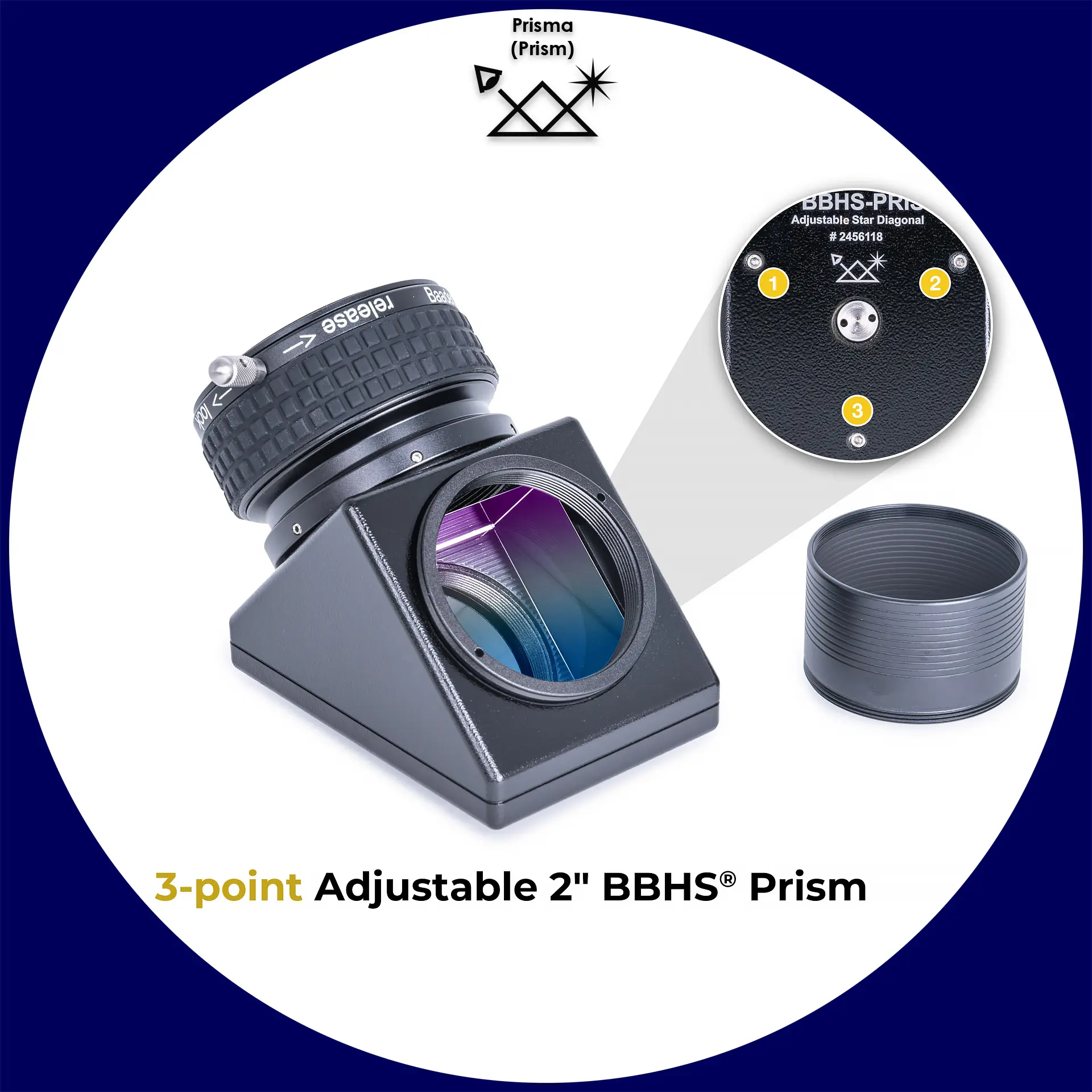

High-quality CNC-milled housing made of black anodised aluminium with precisely adjustable cradle mount
Includes 2" adapter sleeve to 2"/SCTa with safety kerf (BP#2408156) – equipped with safety grooves for reliable, tilt-free clamping
Maximum reflection over a particularly wide spectral range from 390 to 2000 nm
BBHS coating: Broadband hard silver with dielectric protective layer for long-lasting performance
Ideally suited for visual observation and photographic applications – even in the infrared range with maximum brilliance
Silver has been proven to offer the absolute best viewing experience, with no stray light whatsoever. Try it out – the difference is impressive. You will only want to observe planets with the naked eye – or through this silver-coated prism.

Technical Data

Optical Design : Star Diagonal Prism
Deflection angle : 90°
Image Orientation : Erect image, Mirror inverted
Optical length : 85 mm
Glasspath: 50 mm
Reflection surface : BBHS coated, Dielectrically protected
AR-Coating : Phantom Coating® Group
Inner Diameter / Clear Aperture : 47.5 mm
Connection
- Barrel : 2" (50.8 mm) w. 2" Filter thread ( M48 )
- Housing ( lens sided ) : Dovetail ring S58
- Housing ( eyepiece sided ) : Thread M55
- 2-Zoll ClickLock Clamp
Weight : 513 g

Scope of Delivery

Baader 2" BBHS ® Prism Star Diagonal Prism with 2" ClickLock Clamp - Adjustable
Dustcaps
