Name: Baader 2 inch Ultrashort Eyepiece Adapter M60/M68/2"/M68
Brand: Baader Planetarium
SKU: BP#2458196
Price: 90 EUR

Product.Nr.: BP#2458196

EAN: 4047825010032

products condition: new

Manufacturer: Baader Planetarium

90,00 EUR
incl. 19 % VAT

excl. shipping costs

Gewöhnlich versandfertig in 24 Stunden
delivery time : 3-5 Tage

There are no reviews for this product

product description

Ultrashort 2" eyepiece clamp, with M68 male auxiliary thread on the focus side and M68 male thread (Zeiss) and M60 thread (Vixen) on the telescope side
Allows the adaptation of 2" accessories, e.g. to Zeiss eyepiece focusers with M68 female thread.
The M68 adapter thread can be connected to the M68 extension system
Can be combined with a 3.3" union nut to connect to large Schmidt-Cassegrain telescopes

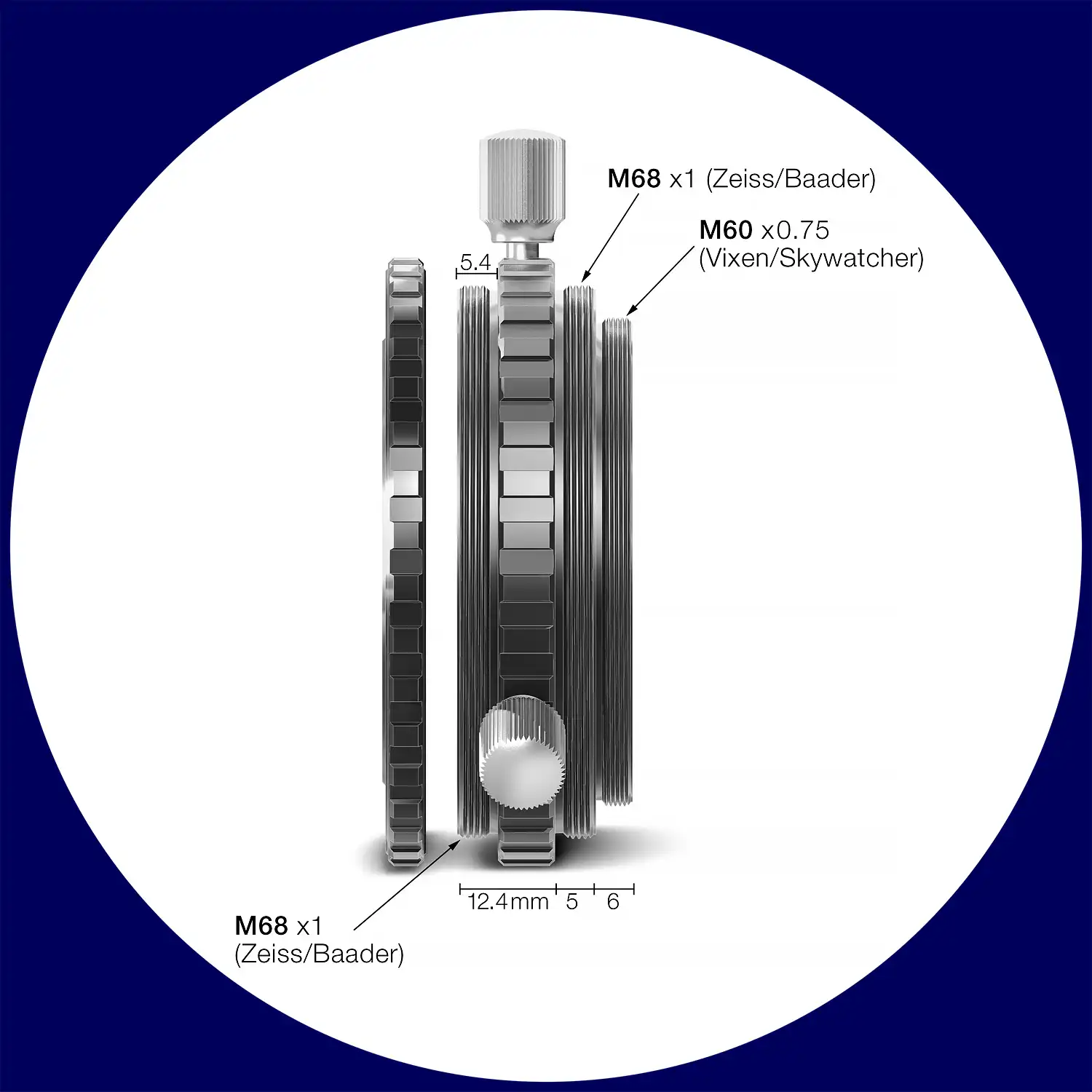

12.4 mm backfocus when using M68 thread
17.4 mm backfocus when using M60 thread

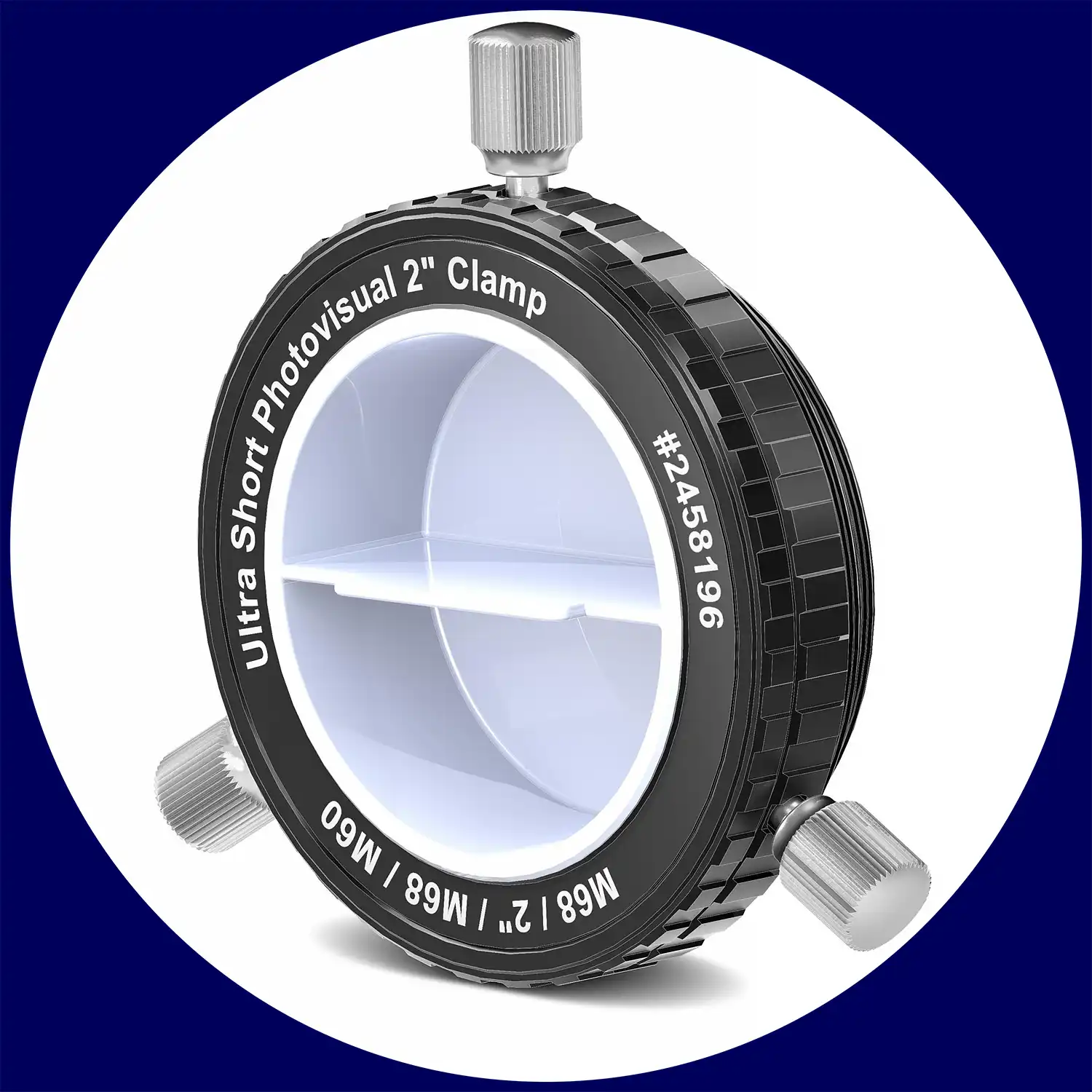

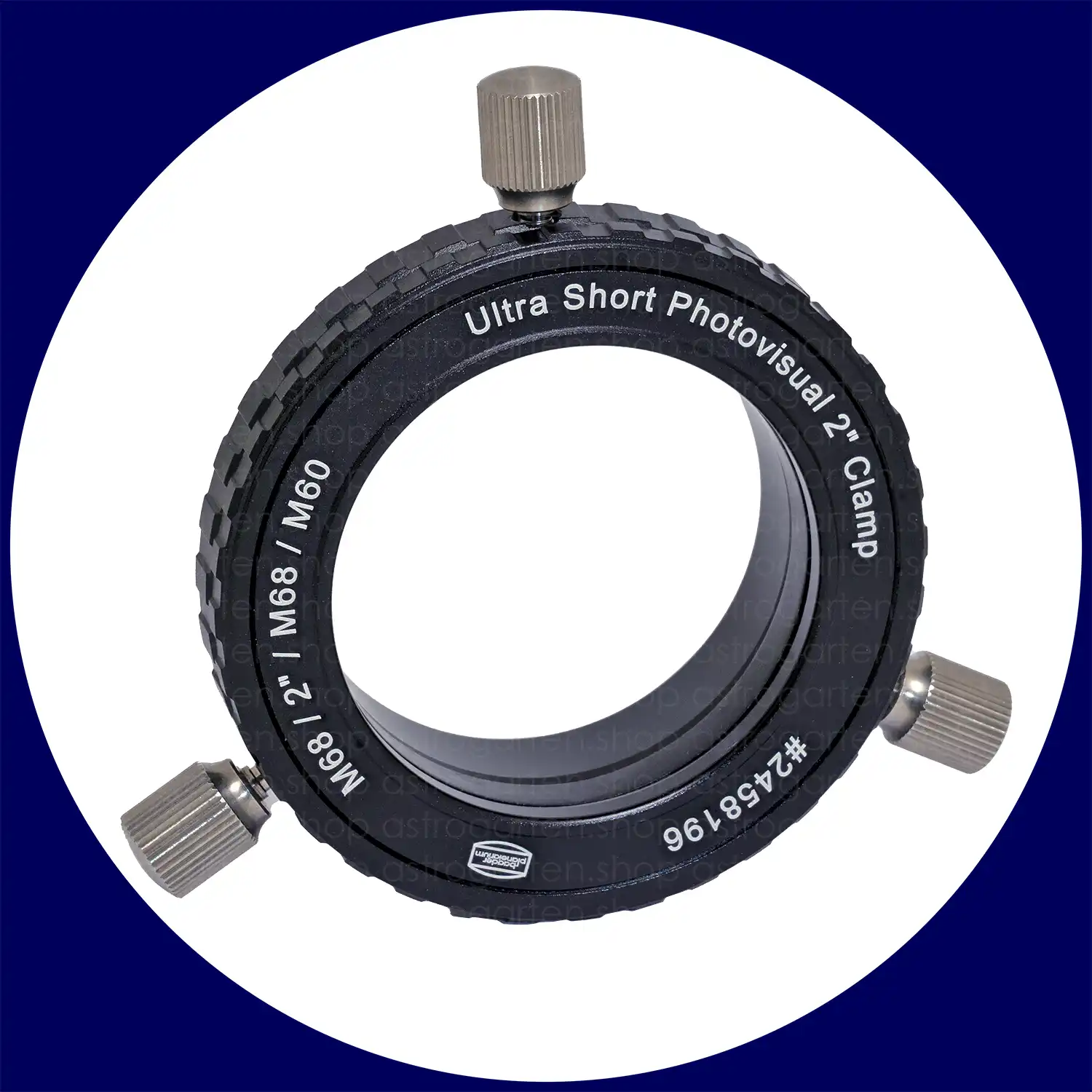

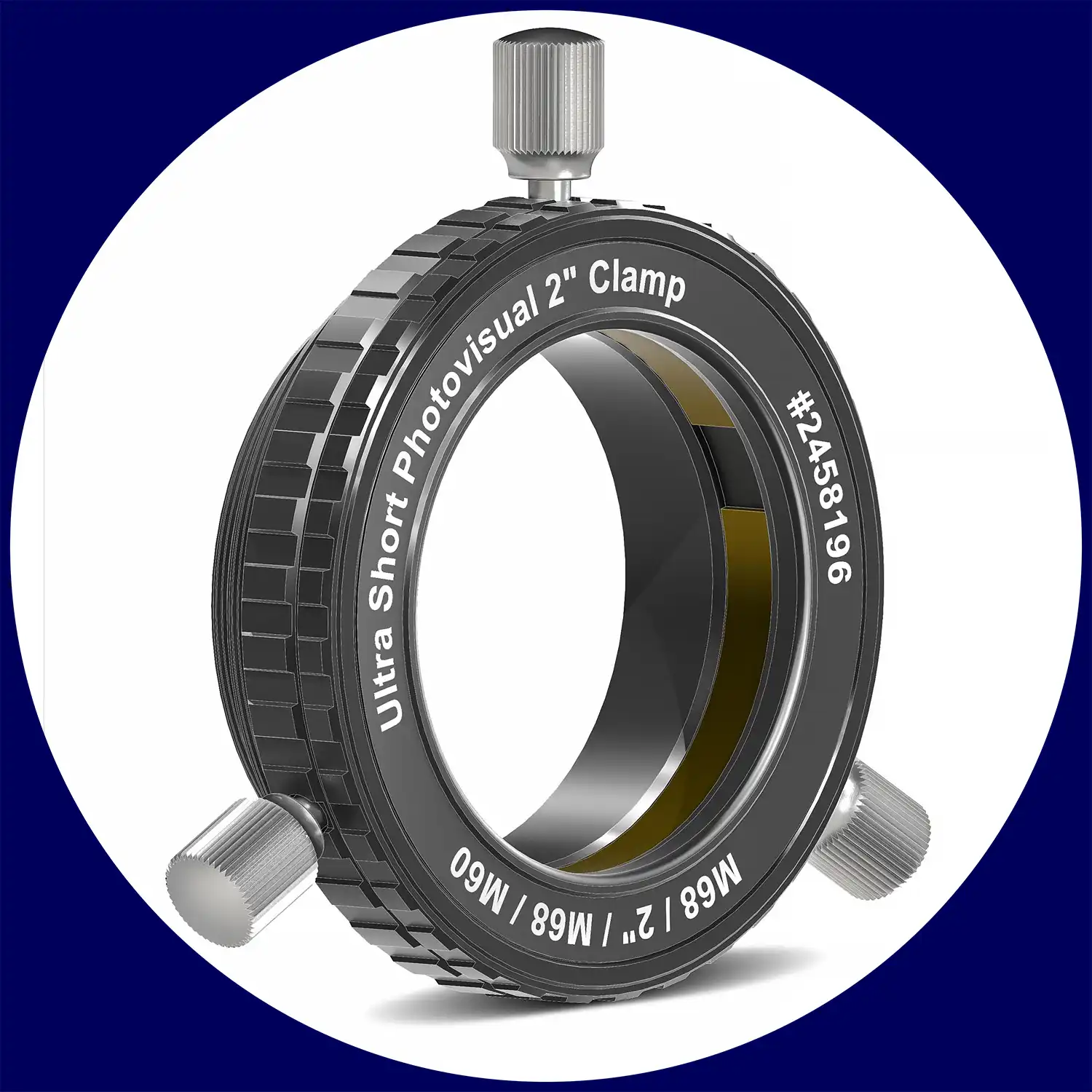

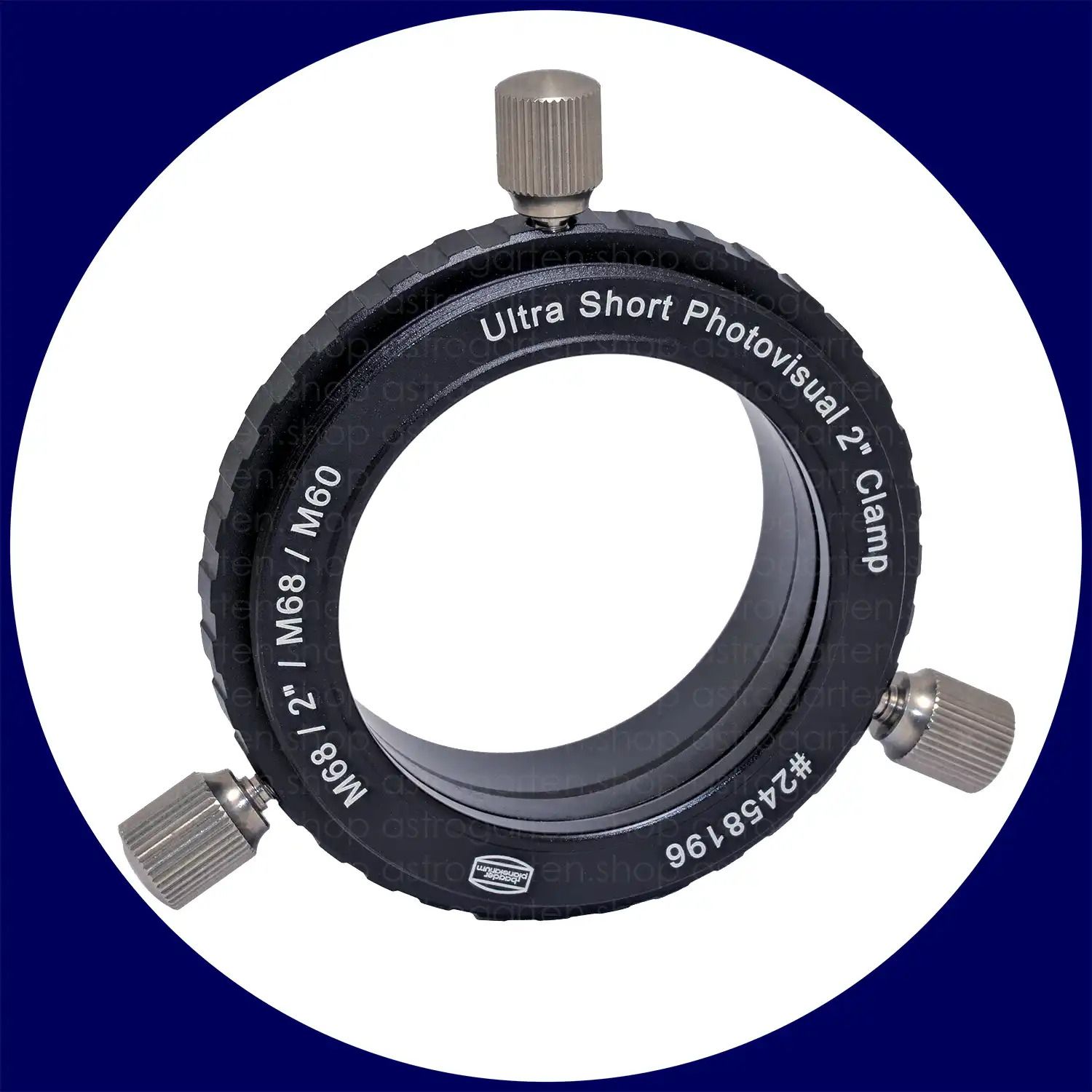

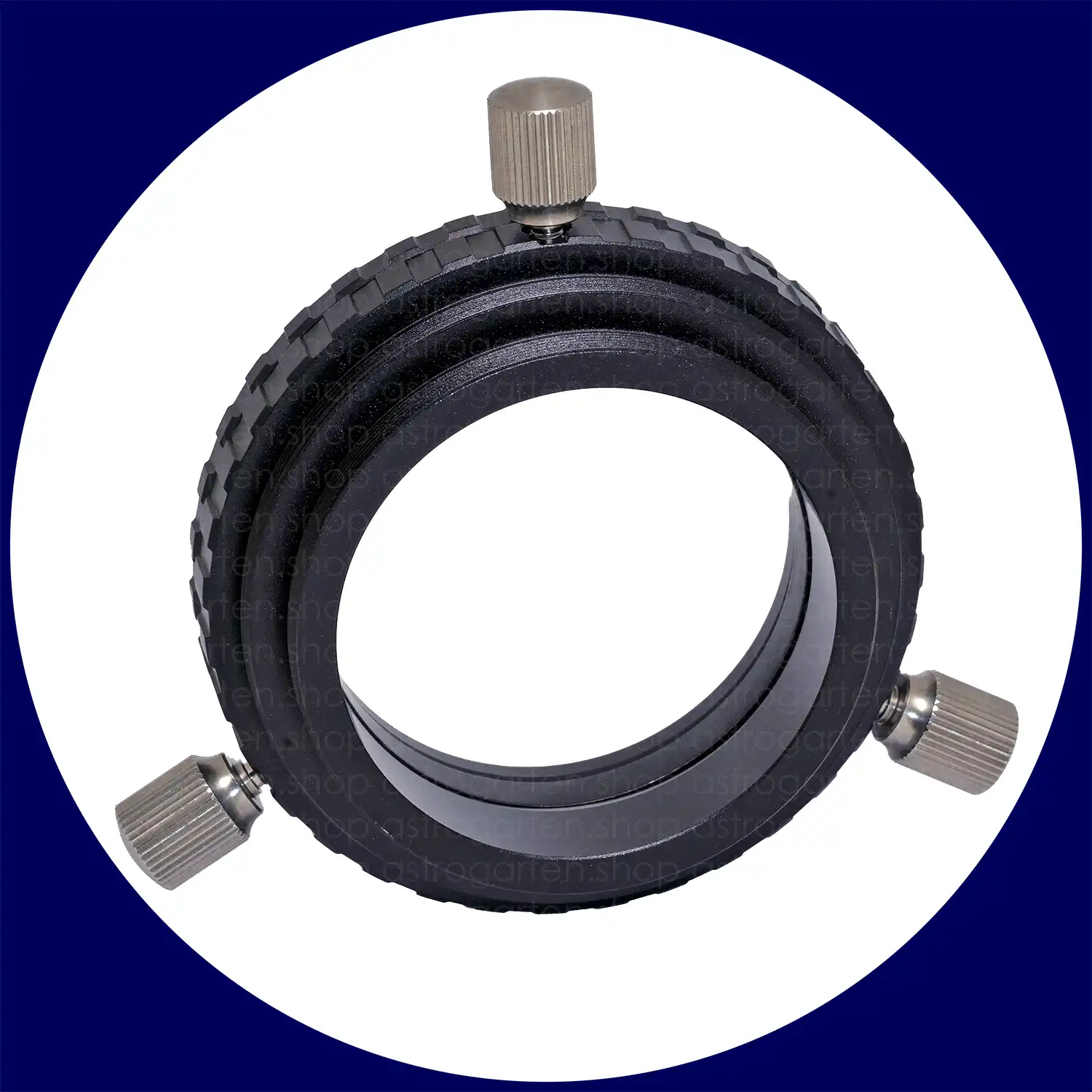

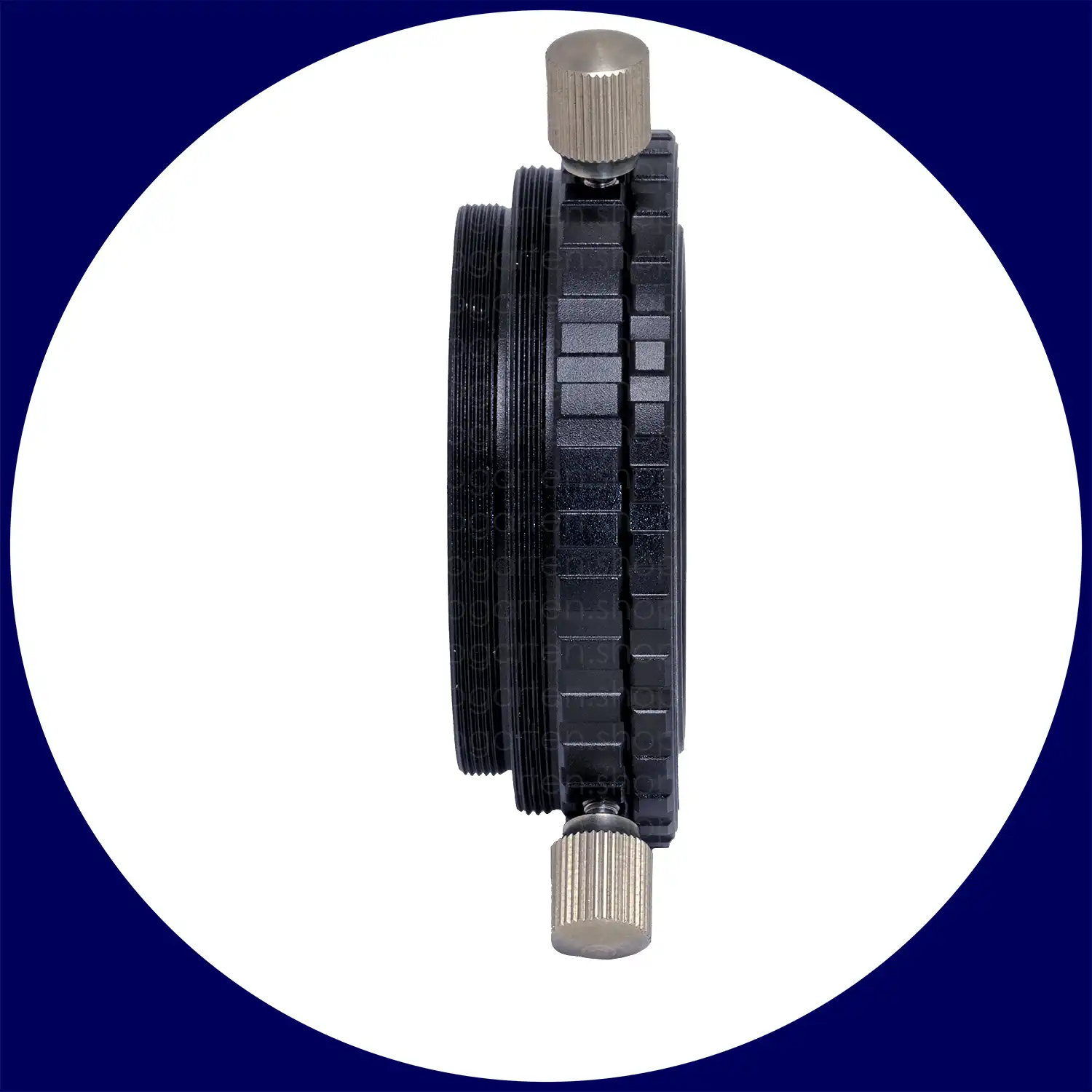

Ultrashort 2" eyepiece clamp

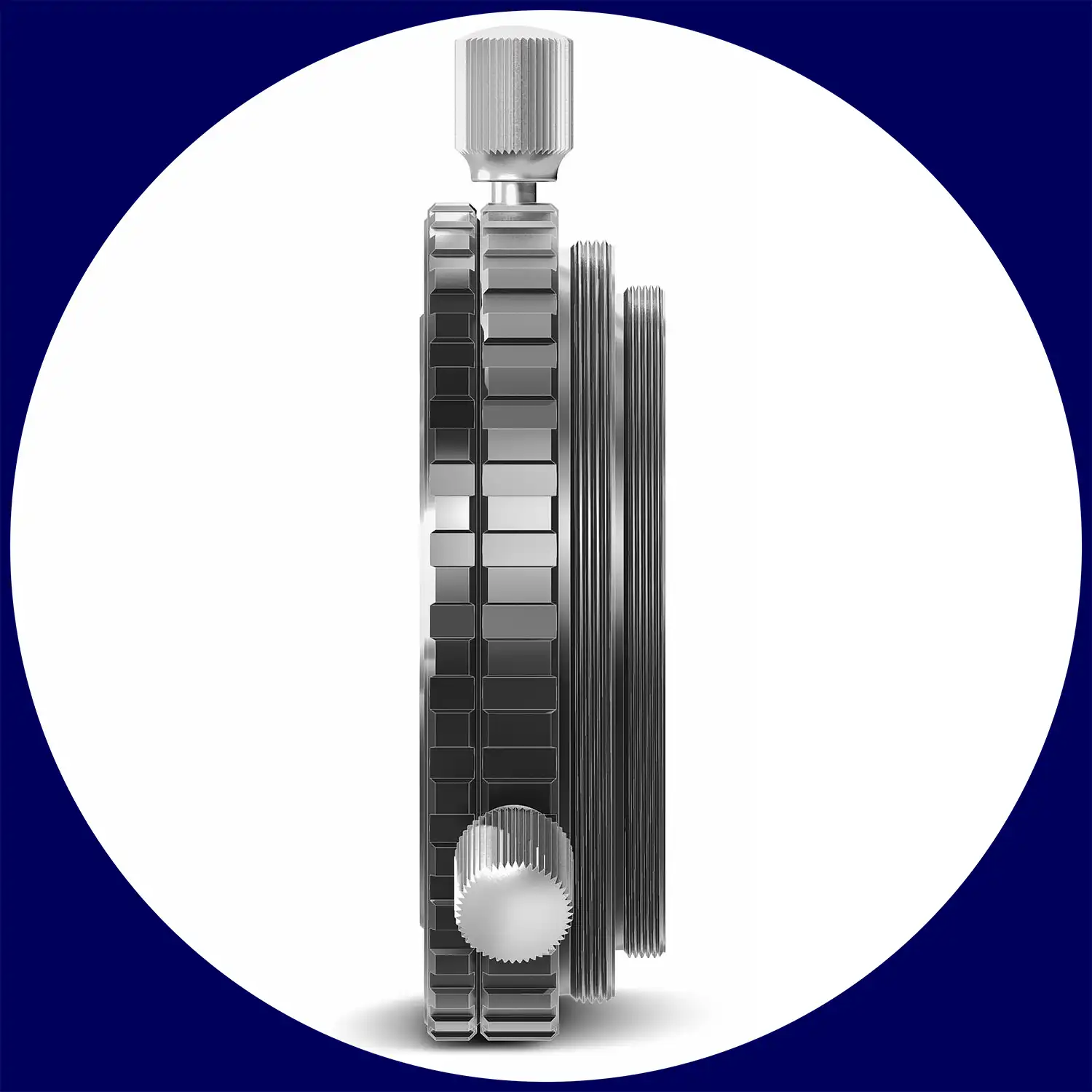

The Ultrashort eyepiece clamp has the following external threads: M68 and M60. It is the shortest 2" eyepiece clamp in the M68 (Zeiss) adapter system and can also be used as a deluxe clamp on all Vixen eyepiece extensions with M60 internal thread.

Easy-grip screws ensure a firm hold.

The double-sided Zeiss thread makes it possible, for example (in combination with the M68 reversing ring #2458195) to use all 2" eyepieces up to 63 mm eyepiece diameter for photographic eyepiece projection or to attach an FFC in the beam path or to mount a telecentric system TZ-2 or TZ-4 behind a TEC or Astro Physics refractor.

The M68 extension system can be screwed tightly and thus provides maximum torsional rigidity for long projection distances and the heaviest photo equipment or a Solar Spectrum solar filter.

Scope of Delivery

Baader 2" Ultrashort Eyepiece Clamp to M68a/M60a

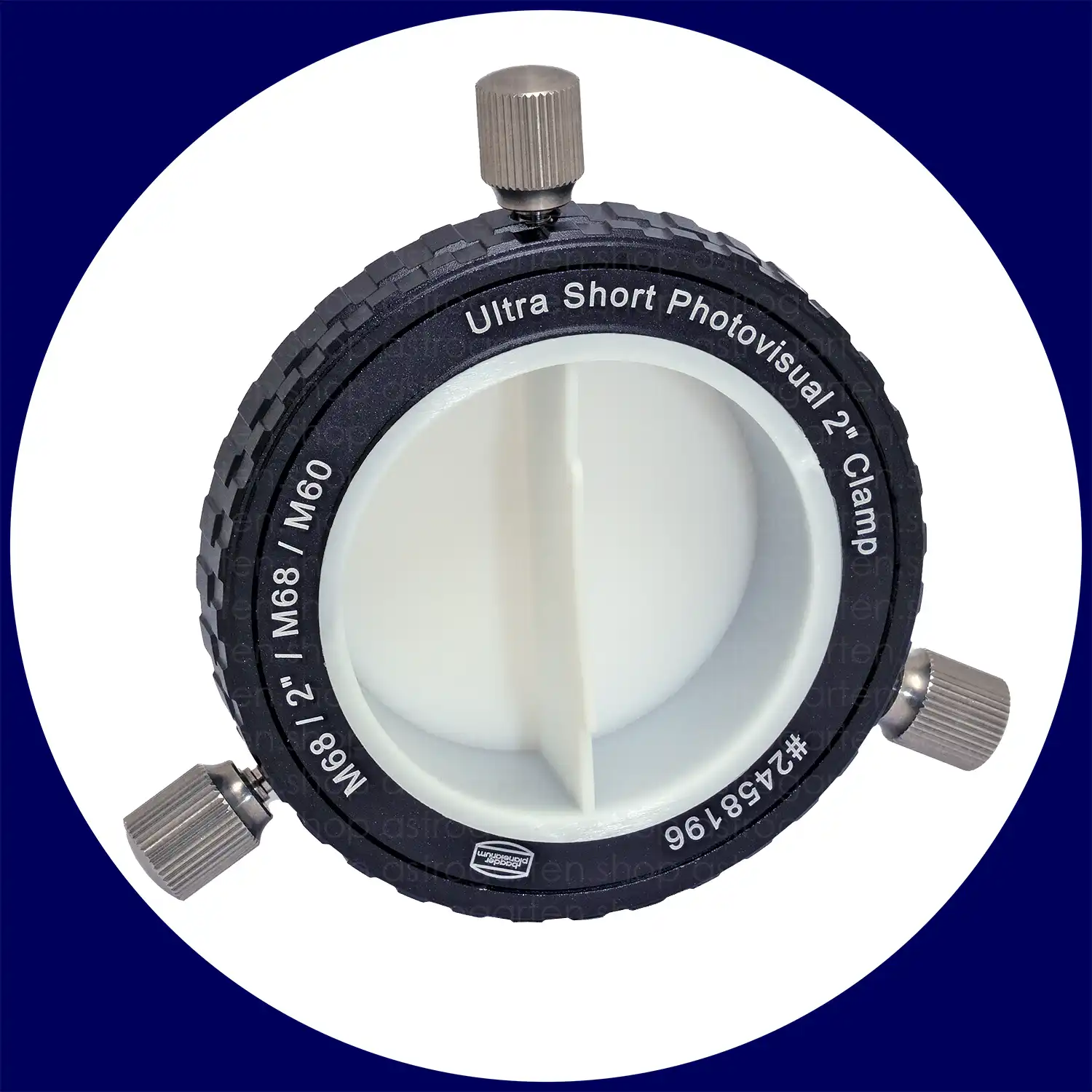

2" Dust Cup
